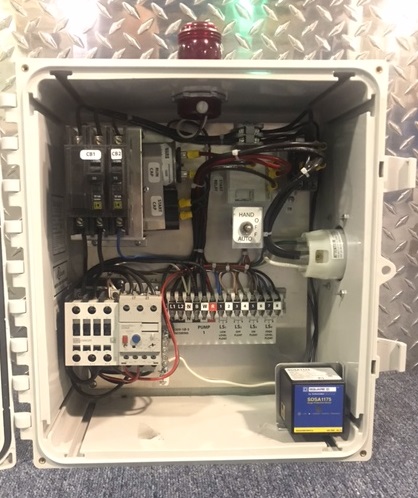

Simplex Control Panels
2 or 3 Float Operation
KEEN Pump simplex control panels are custom designed for use with KEEN Pump grinder pumps and packaged systems.
All control panels are built to Underwriters Laboratories UL508 standard to ensure the highest level of quality and safety.
All panels can carry the UL label.
There are many optional features available, consult the “Control Panel Options Page”.
Standard Features - Simplex Panels
Single Phase
NEMA 4X Fiberglass Enclosure
Stainless Steel Piano Hinge
Pump Circuit Breaker (2 Pole)
Control Circuit Breaker
Motor Contactor
Start Capacitor Kit
External Alarm Light
- Flashing – High Water Level
Audible Alarm – Sonalert Buzzer
Alarm Test / Silence Switch
Control Circuit Relay
DIN Rail Mounted Components
Aluminum Back plate
Internal HOA Switch
External Lockable Hasps
Easy Wiring Terminal Blocks Grounding Lugs
Wiring in Enclosed Wire way
Duplex Control Panels
Duplex Control Panels
4 Float Operation
KEEN Pump duplex control panels are custom designed for use with KEEN grinder and sewage pumps and packaged systems.
All control panels are built to Underwriters Laboratories UL508 standard to ensure the highest level of quality and safety.
All panels can carry the UL label.
There are many optional features available, consult the “Control Panel Options Page”.
Standard Features - Duplex Panels
Single Phase
NEMA 4X Fiberglass Enclosure
Stainless Steel Piano Hinge
(2) Pump Circuit Breakers (2 Pole)
(2) Capacitor Start Kits
Control Circuit Breaker
(2) Motor Contactors
Alternator (switch able w/lights)
External Alarm Light
- Flashing – High Water Level
Audible Alarm – Sonalert Buzzer
Alarm Test Switch
(3) Control Circuit Relays
DIN Rail Mounted Components
Aluminum Back plate
(2) Internal HOA Switches
External Lockable Hasps
Easy Wiring Terminal Blocks
Grounding Lugs
Three Phase
NEMA 4X Fiberglass Enclosure
Stainless Steel Piano Hinge
(2) Pump Circuit Breakers (3 Pole)
Control Circuit Breaker
(2) Motor Starters
Alternator (switch able w/lights)
External Alarm Light
- Flashing – High Water Level
Audible Alarm – Sonalert Buzzer
Alarm Test Switch
(3)Control Circuit Relays
DIN Rail Mounted Components
Aluminum Back plate
(2) Internal HOA Switches
External Lockable Hasps
Easy Wiring Terminal Blocks
Grounding Lugs
Wiring in Enclosed Wire way
Transformer (460 volt panels only)
